Sand Reclamation System
No-Back Sand Mechanical Attrition

We provide a wide range of sand reclamation plant, which can helpful for reducing new sand cost as well as solve
environmental issues related to dumping the used sand. our reclamation plant remove controlled amount of binder
layer from the sand grain.


Sand-Mechanical-Attrition

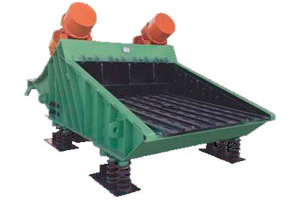

Low deck LD - CR Model: Range from 1 - 3 tph

LOW DECK RECLAMATION SYSTEM
  • LD - CR series
  • LD - CR Series units are available in 1 TPH and
    3 TPH throughput capacities.
  • Compact lay out minimize floor requirement.
  • Compact unit with combine shakeout deck,
    elevator & cooler - classifier





Model Capacity
TPH
Vibratory
Motor kw
FD Fan
Power HP
Extraction
Power HP
Deck Area
mm* mm
LD - CR 01 1 3 1.5 3 900*800
LD - CR 03 3 4 3 5 1000*1000


LOW DECK RECLAMATION SYSTEM
  • LLD series:
  • 6 TPH and 12 TPH throughput capabilities.
  • LLD series consist of a shake out cum lump reducer,
    vibratory elevator and a cooler - classifier.
  • Floor mounted set up wit no pit.
Sand-Mechanical-Attrition

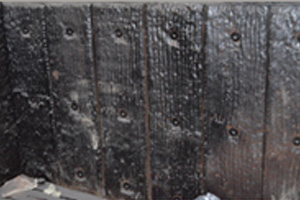

Replaceable Wear Plates Allows Easy Maintenance

Sand-Mechanical-Attrition

Low deck LLD Model: Range from 6 - 12 tph



Model Capacity
TPH
Vibratory
Motor kw
Deck Area
mm*mm
Deck Loading
Capacity Kg
LLD 06 6 8.6 1250*1260 1200 max
LLD 09 9 11 1500*1500 1500 max
LLD 12 12 14 2000*2000 3000 max


Sand-Mechanical-Attrition
HIGH LEVEL RECLAMATION SYSTEM
  • High level reclamation system is supplied with
    separate shake out machine, lump reducer, belt
    conveyor, fluidized bed cooler /classifier and other
    conveying equipments.
  • Up to 24 TPH throughput capabilities.





Model Capacity
TPH
Tub
Capacity kg
Vibratory
Motor kw
Feed Area
mm*mm
HLT 03 3 350 2.5 1150*750
HLT 06 6 900 4.3 1600*750
HLT 10 10 1200 7 1600*1250
HLT 15 15 1800 9.8 1600*1500
HLT 20 20 2000 14 1700*1500
HLT 24 24 3000 19 2000*1800
