| MOULDING MACHINE (SYMENTENOUS JOLT SQUEEZ) |
 |
 |
|
Gone are the days when preparing good quality of mould with consistent
sand pack density, was not manual skill oriented but also quite time
consuming. Now the jolters and squeezers are a part of any good foundry
that care for productivity and consistent quality.
JKFE engineering expertise coupled with the in-depth knowledge of the
requirements of the perfect moulds has resulted in bringing out the highly
efficient and fast simultaneous Jolt Squeezing Machine is engineered with
utmost care to improve your productivity many folds with affordable cost. |
| |
| |
| SPECIAL FEATURES |
- Sturdy construction
- Simultaneous jolt sqeeze for high mould
strength
- Engineered for easy maintenance Centralised auto lubrication during each
cycle
- Feather touch push buttons for controls
- Hard chrome plated guide rods and lifting
rods
- Gradual lifting and simultaneous
vibration for improved separation of the
mould from the pattern
- Automatic operation - Complete
pneumatic or electropneumatic controls
|
| |

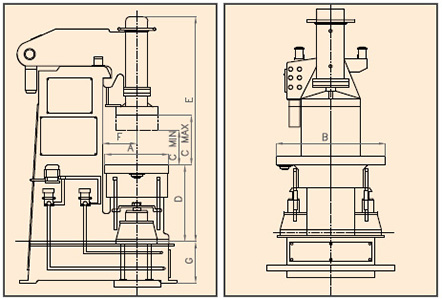

| MACHINE DIMENSIONS |
| Machine Size |
JMM - 200 |
JMM - 300 |
| A |
510 |
580 |
680 |
| B |
840 |
960 |
1050 |
| C Min |
210 |
310 |
300 |
| C Max |
350 |
450 |
500 |
| D |
740 |
670 |
700 |
| E |
1650 |
1850 |
1980 |
| F |
295 |
310 |
370 |
| G |
240 |
400 |
620 |
|
| |
| |
| TACHNICAL SPECIFICATIONS |
| MODEL |
JMM - 200 |
JMM - 300 |
| Jolt Capacity |
200 Kgs |
3000 Kgs |
450 Kgs |
| Pattern Draw |
200 mm |
220 mm |
250 mm |
| Squeeze Stroke |
130 mm |
130 mm |
140 mm |
| Static Squeeze Pressure |
4000 Kgs |
5000 Kgs |
8000 Kgs |
| Dynamic Squeeze Pressure |
12000 Kgs |
15000 Kgs |
24000 Kgs |
| Air Supply Pipe to the M/c |
11/2" |
11/2" |
2" |
| Table Size |
510x840 mm |
580x960 mm. |
680x1050 mm. |
| Net Weight Of the M/c.(Approx) |
1950 Kgs |
2700 Kgs |
3900 Kgs |
|
| |
|
|
|
|
|
