Sand Preparation Equipments

 No Back Sand Preparation

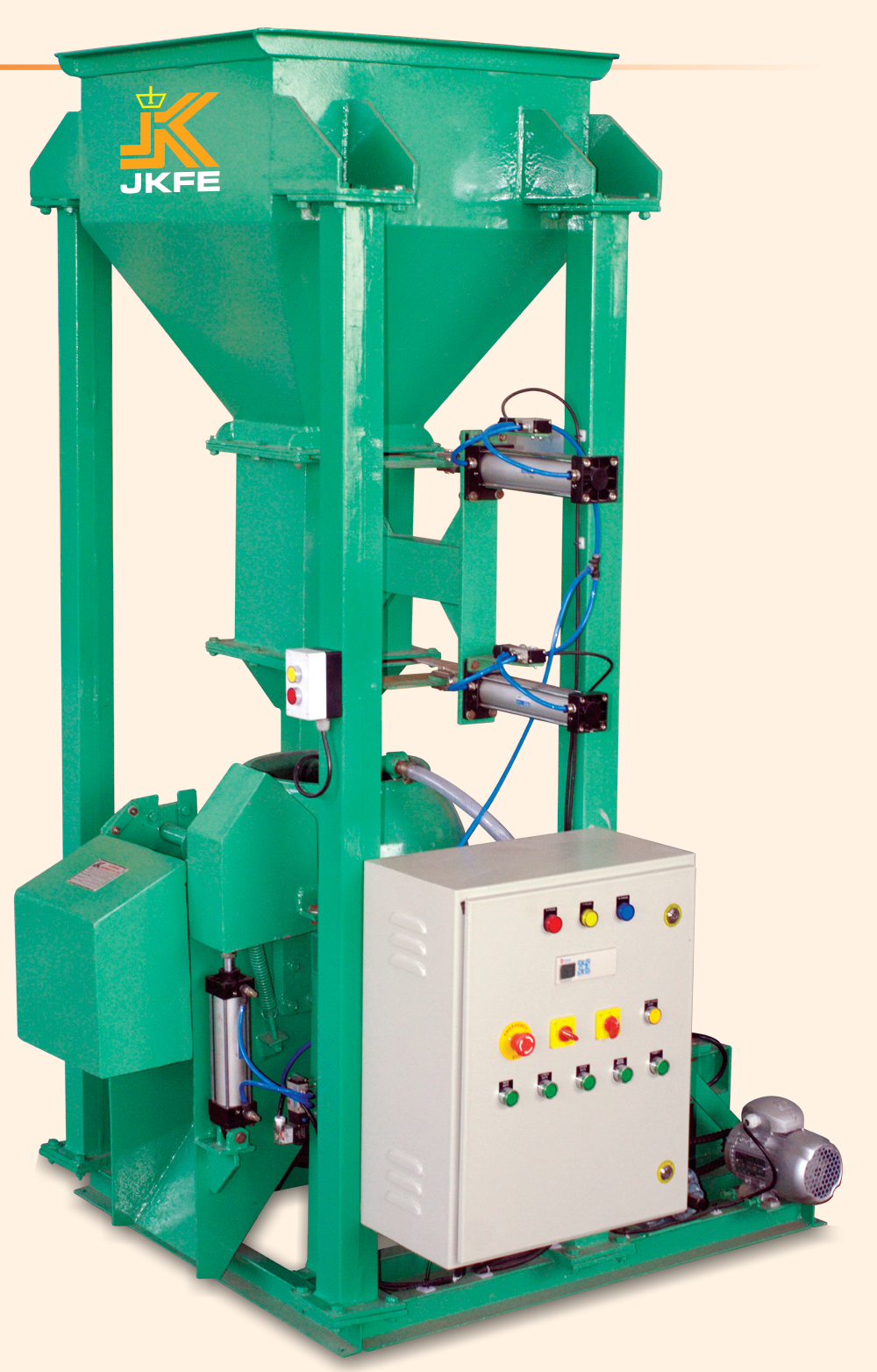

SUPER MIXER
Super Mixer (Spherical Bowl Mixer) is unlike conventional mixer-Muller for No Back sand mixing. This Mixer consists mainly of a newly developed mixer Bowl. The mixer has a spherical construction with specially designed high-speed two action blades, which gives three-dimensional movement for thorough mixing of sand with silicate, organic binder or catalyst in any combination in just 15 to 18 sec. Models available for chemically bonded sand/silicate sand and dual capability.


super-mixer
  1. Complete mixing in short time and uses lesser amount of
    binders. If in your conventional mixer using 5% silicate, we
    ensure you that at list 1% of silicate you can save in our mixer.
  2. Due to three-dimensional mixing at high speed, no unmixed
    silicate balls are there. And cause of that you can get good
    surface finishing of casting and save fettling cost indirectly.
  3. Cleaning can be easily done since sand does not remaining in
    the mixer bowl due to bottom discharge.
  4. Compactly designed, molding sand can be accurately
    supplied at any time without waste, due to lower batch
    capacity 15 kg to 30 kg. It is not possible in conventional mixer.
  5. Weighing and mixing of material are automatically controlled
    for rationalization of work. Due to automation only one switch
    operation is there, so only one person or molder can operate
    mixer whenever needed. Result of this process leads to man
    power saving.
  6. Although it is of small sized model; its capacity is comparable
    to large sized mixer when operated continuously.
  7. Breakdown is minimized and maintenance is easy due to
    Sturdy and compact design. No need of major civil work or
    space.
  8. Can be use as Core Sand Mixture.


Specifications

Model : SM 30 / C, SM 30 / D : SM 100 / C, SM 100 / D
Type : Batch Mixer. : Batch Mixer.
Capacity : 30 Kg / Batch. : 100 Kg / Batch.
Connected Main Motor : 5.5 kw / 7.5 HP. : 11 kw / 15 HP.
Hardner Feed by : Magnet Couple SS316L Geared   Pump. : Magnet Couple SS316L Geared   Pump.
Pump Motor

: Resin 0.25 kw / 0.33 HP

  C I Geared Pump

  Hardner 0.18   kw / 0.25 HP   SS316L   Geared   Pump.

: Resin 0.25 kw / 0.33 HP

  C I Geared Pump

  Hardner 0.18   kw / 0.25 HP   SS316L   Geared   Pump.
Control Panel : PLC controlled with Program   loaded   complete for No Bake Praparation   Sand : PLC controlled with Program   loaded   complete for No Bake Praparation   Sand
Mixing Cycle Time : 40 Sec. Max : 60 Sec. Max
